What Must Your Wheel Grinder Be Equipped With for Safe Operation?

A bench grinder seems simple, but missing key components transforms this basic tool into a high-speed hazard. An improperly adjusted guard or rest can cause a wheel to shatter, turning your workshop into a danger zone in an instant.

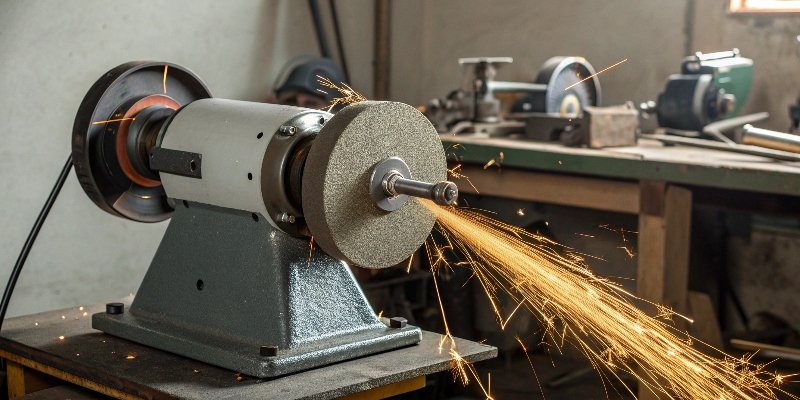

Every wheel grinder must be equipped with the correct grinding wheel for the job, proper safety guards covering the wheel, an adjustable work rest, and a spark arrester. The operator must also use personal protective equipment (PPE), including eye and face protection.

My company, Reliable, stakes its reputation on safety and performance. From our perspective as a manufacturer, a grinder isn’t just a motor; it’s a complete system. The machine, the abrasive wheel¹, and the safety features² are all designed to work together. My insights come from nearly three decades of seeing what works and, more importantly, what fails. Neglecting just one of these essential components breaks the system and invites serious risk. Let’s look at each piece of equipment you absolutely must have in place before you flip that switch.

What should wheel grinders be equipped with?

You have a new grinder, but are you truly ready to use it? Without the right total setup, you’re not just inefficient; you’re unprepared for the inherent risks of the machine.

Every grinder setup requires three core components: a properly functioning machine with all guards in place, a grinding wheel rated for the grinder’s speed, and mandatory personal protective equipment (PPE) for the operator.

This three-part system is the foundation of safe grinding. First is the machine itself. It must be securely bolted down to a bench so it cannot move during operation. All guards that came from the manufacturer must be installed. Second is the abrasive wheel. This is our area of expertise. The wheel’s maximum RPM³, printed on its label, must be higher than the grinder’s RPM. Using a wheel not rated for the machine’s speed is one of the most common causes of wheel explosions⁴. Finally, there’s the operator. The machine can’t protect you from everything, which is why PPE is not optional. The combination of a secure machine, the correct wheel, and a protected operator creates a complete and safe working environment.

The Grinding Safety System

What three parts should the front of each wheel of a bench grinder be equipped with?

That small gap between your tool rest and the grinding wheel looks insignificant. It seems fine until it violently grabs your workpiece, pulling your hand toward the spinning wheel.

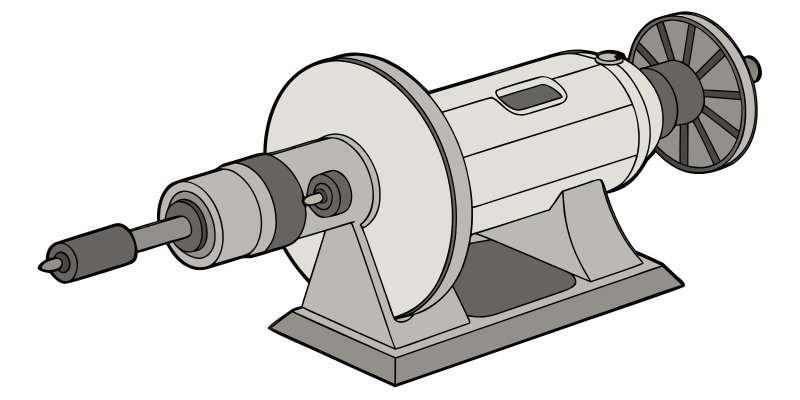

The front of a bench grinder wheel must have three critical safety parts: the main safety guard covering the wheel, an adjustable work rest with a maximum 1/8-inch (3mm) gap, and an adjustable spark arrester (or tongue guard) with a maximum 1/4-inch (6mm) gap.

These three parts are your first line of defense, and their adjustment is critical. First, the large safety guard covers most of the wheel, designed to contain the fragments if a wheel ever breaks. It is not removable. Second is the work rest. This adjustable platform supports the piece you are grinding. Its most important feature is the gap between it and the wheel. If this gap is too wide, the workpiece can be pulled into the space, jamming the wheel and potentially causing it to shatter or pulling your hand in. The rule is to always keep this gap at 1/8-inch or less. Third is the spark arrester⁵, sometimes called a tongue guard. This adjustable plate at the top of the wheel opening deflects sparks away from you and also helps contain fragments. It must be adjusted to within 1/4-inch of the wheel. I always tell new clients that checking these two gaps should be a reflex action before every use.

The Three Essential Front Guards

What are the OSHA requirements for using a grinder?

You believe your workshop is safe, but is it compliant with regulations? An OSHA inspection can be costly, but more importantly, non-compliance indicates real, unaddressed safety risks that can lead to injury.

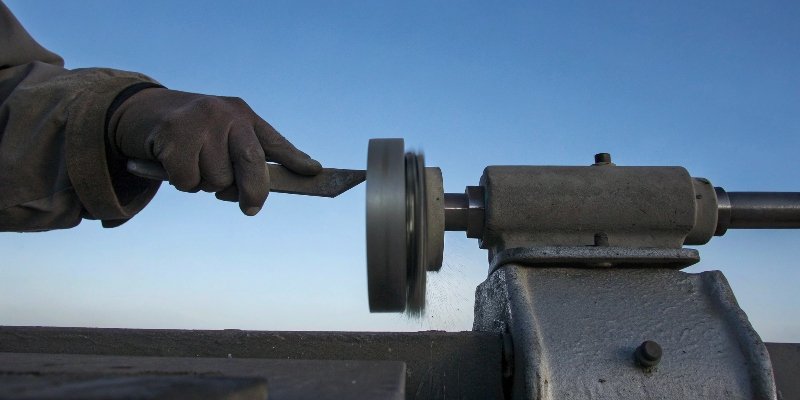

OSHA standard 1910.215 outlines key requirements. It mandates safety guards covering the spindle and flanges, specific gaps for work rests (1/8") and tongue guards (1/4"), and requires a "ring test" on new wheels before mounting to check for hidden damage.

The OSHA standards are not just bureaucratic rules; they are life-saving procedures based on decades of accident data. In our B2B business, helping our customers in the US market meet OSHA compliance is a priority. The rules for guarding and rest adjustments are the most visible requirements. The work rest must be kept at 1/8" from the wheel, and the tongue guard at 1/4". But a less visible but equally critical rule is the "ring test⁶." This requires a user to inspect a new wheel for damage before mounting it. Shipping and handling can cause microscopic cracks that are invisible to the eye but can lead to a catastrophic failure at high speed. The ring test is a simple, effective way to find these hidden flaws. OSHA also requires that the grinder’s RPM never exceeds the maximum RPM rating printed on the abrasive wheel. This ensures the wheel is not spun faster than it was designed to withstand.

What is the single most important safety check for a grinding wheel?

You are about to install a new wheel. It looks perfect, so you tighten the nut and get ready to work. But an invisible crack from a drop during shipping can turn that new wheel into a grenade once it spins up.

Before mounting any new vitrified grinding wheel, you must perform a "ring test." Tap the wheel gently with a non-metallic object. A clear, high-pitched ring means it’s safe. A dull thud indicates a hidden crack, and the wheel must be destroyed and discarded.

This simple, free test is arguably the most critical piece of safety equipment you have. At our factory, we know that wheels leave here structurally perfect, but we cannot control what happens during shipping and handling. The ring test is the final quality check performed by the user. To do it, make sure the wheel is dry and clean. Suspend it through the arbor hole with your finger or a small pin so it can hang freely. Then, tap it gently about 45 degrees from the vertical centerline with the plastic handle of a screwdriver. A good wheel will vibrate consistently, producing a clear, ringing sound. If there’s an internal crack, it disrupts the vibration and you’ll hear a dead, dull thud. This simple sound test is your best indicator of a wheel’s integrity. It costs nothing, takes five seconds, and can prevent a violent wheel explosion. It’s a non-negotiable step for every technician.

Conclusion

Essential grinder equipment—from guards and rests to correctly rated wheels and vital safety checks like the ring test—is not optional. It is the foundation of safe and professional work.
