What is a grinding machine?

You need to shape a metal part to an exact size and smoothness. Traditional cutting tools leave a rough finish. So, how can you achieve high precision and a perfectly smooth surface for critical components?

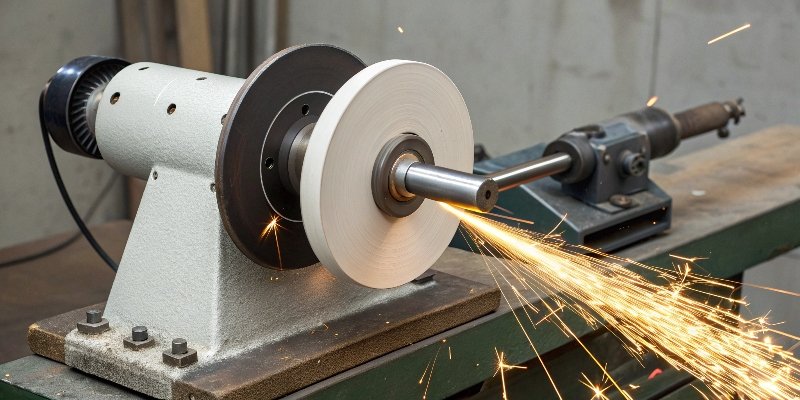

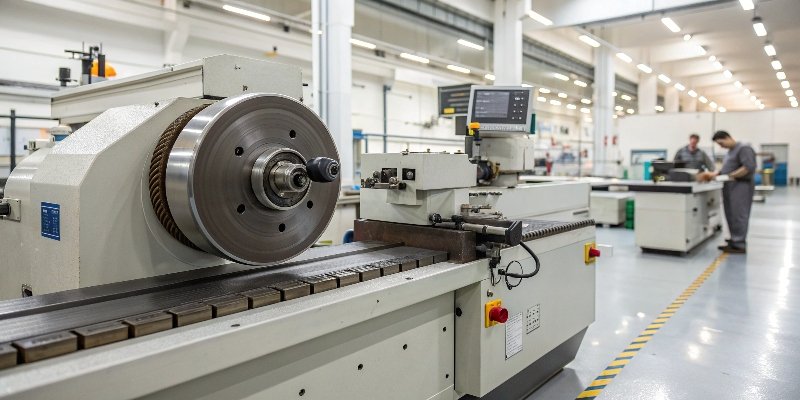

A grinding machine is a power tool or machine tool that uses a rotating abrasive wheel to wear away material, creating highly accurate dimensions and very fine surface finishes. It is a precision finishing tool used for work that other cutting tools cannot achieve.

In our nearly three decades of manufacturing abrasive wheel¹s at Reliable, we know that a grinding machine² is more than just a motor that spins a stone. It is a system designed for stability and precision. The machine and the abrasive wheel work together as partners. A rigid, accurate machine allows our grinding wheels to perform their best. This combination is fundamental to modern manufacturing, enabling the production of everything from automotive engine components to medical implants. Understanding the machine is the first step to choosing the right abrasive for your job.

What is a grinding machine used for?

Your machined parts aren’t meeting the tight tolerances required. This leads to assembly problems and rejected orders. How do you get that last bit of precision for a perfect fit and finish?

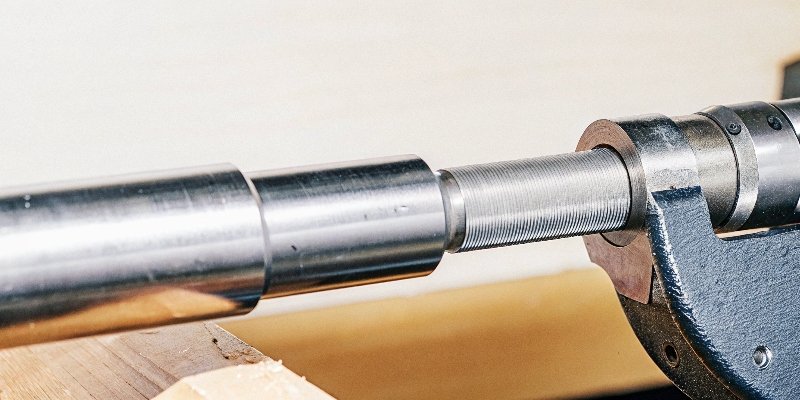

A grinding machine is used for finishing operations that require extreme precision and a superior surface finish. Its main purposes are to bring a workpiece to an exact size, shape flat or cylindrical surfaces accurately, and sharpen complex cutting tools.

Grinding is typically one of the final steps in the manufacturing process. It’s not about removing large amounts of material quickly; it’s about perfection. After a part has been roughly shaped by a process like milling or turning, grinding is used to remove the final few thousandths of an inch. This corrects any minor inaccuracies and creates the final, precise dimension. Beyond just size, grinding drastically improves the surface finish. It smooths out the microscopic peaks and valleys left by other cutting tools, which is critical for parts that slide against each other. A smooth surface on a bearing or piston reduces friction, minimizes wear, and extends the life of the entire assembly. It is the key to creating quiet, efficient, and long-lasting mechanical parts.

Key Applications of Grinding

What are the three types of grinding machines?

You know you need a grinding process, but the term is too broad. Choosing the wrong type of machine for your part’s geometry means wasted time and investment on the wrong equipment.

The three fundamental types of industrial grinding machines are surface grinders, cylindrical grinders, and tool and cutter grinders. Each is designed to create a specific geometry: flat surfaces, round parts, or complex shapes like cutting tools, respectively.

While there are many specialized grinders, most fall into one of these three families. Surface grinders are used to produce very flat surfaces. The workpiece is held on a flat table that moves back and forth under the grinding wheel. They are essential for making items like square blocks and mold components. Cylindrical grinders are used for round parts. The workpiece is rotated between two centers while the grinding wheel is fed into it. This method produces precise shafts, pins, and tubes. These machines can often do both outside diameter (OD) and inside diameter (ID) grinding. Tool and cutter grinders are the most versatile. They often have heads that can pivot on multiple axes, allowing an operator to create or resharpen the complex angles found on drill bits, reamers, and milling cutters.

Overview of Grinding Machine Types

What is milling vs grinding?

Both milling and grinding remove metal, but they look very different. Choosing the wrong process can be inefficient, costly, and might not even achieve the required part specifications.

Milling is a coarse cutting process that uses a sharp, multi-toothed cutter to remove large amounts of material quickly. Grinding is a fine abrasive process that uses a wheel to remove very small amounts of material for high precision and excellent surface finish.

Think of milling as the heavy-lifting of machining. A milling machine uses a rotating cutter with sharp teeth to shear off large chips of metal, quickly roughing a block of material into a basic shape. It’s valued for its high material removal rate. Grinding, on the other hand, is the finishing touch. It uses an abrasive wheel made of thousands of tiny, hard grit particles. These particles act like microscopic cutting tools, abrading away tiny amounts of material. This slow, controlled process is not used for rough shaping but for achieving the final dimension and surface texture. In a typical production line, a part would be milled first to get it close to size, and then transferred to a grinder for the final, high-precision finishing operation. They are two different steps toward the same goal.

Comparing the Two Processes

What are the disadvantages of grinding machines?

Grinding seems like the ultimate solution for precision. But investing in this process without understanding its drawbacks can lead to unexpected costs, production bottlenecks, and operator challenges.

The main disadvantages of grinding machines are their slow material removal rate, high heat generation which can damage the workpiece, and the significant capital cost and operator skill required. The process can also create hazardous dust.

While grinding is essential for precision, it has its trade-offs. The first is speed. Because it removes so little material, grinding is a slow process compared to milling. This can create a bottleneck in a production line if not managed well. Second, the intense friction generates a great deal of heat. If not controlled with coolant, this can cause "grinding burn³," which can soften or damage the surface of the metal and ruin the part. Third, these are not simple machines. High-precision grinders are a significant capital investment, and they require highly skilled operators to run effectively. Finally, there are safety concerns. The process creates very fine metal and abrasive dust, which is a respiratory hazard and requires proper ventilation. There is also the inherent risk of a wheel breaking if it is damaged or mounted incorrectly, which is why safety guards are so critical.

Conclusion

A grinding machine is a precision tool that uses an abrasive wheel to achieve fine finishes. Understanding its types, best uses, and limitations is key to effective and safe manufacturing.
