What is a finish grinding machine?

Your machined parts have the right dimensions, but their rough surface finish leads to noise, friction, and early failure. This damages your products’ reputation and costs you money.

A finish grinding machine is a precision grinder designed to produce an extremely smooth surface and achieve very tight dimensional tolerances on a workpiece. It is the final step in the machining process, focusing on quality over material removal rate.

In my nearly 30 years of manufacturing abrasives here in Henan, I’ve seen the difference between a part that is just "made" and one that is "perfected." The final finishing stage is what separates good from great. Finish grinding is not about removing a lot of metal. It is about creating the perfect surface. It is a critical process for any industry where performance and longevity are important, like in aerospace, automotive, or high-end machinery. This final touch is what our customers rely on for their most demanding applications, and it requires a special machine and the perfect abrasive wheel¹.

What are the 4 types of grinding machine?

You hear engineers talk about different grinding methods. But the terms cylindrical, surface, and centerless can be confusing, making it hard to specify your needs to a supplier.

The four main types of grinding machines are surface grinders for flat parts, cylindrical grinders for round parts, centerless grinders for high-volume production of round parts, and tool & cutter grinders for sharpening or creating tools.

Each machine type is designed for a specific geometry, and a different kind of grinding wheel might be used for each. Understanding these helps you communicate your needs clearly. As a factory, we produce wheels for all these machines, from large corundum wheels for surface grinders to highly complex diamond wheel²s for tool and cutter grinders. Here is a simple breakdown.

Types of Grinding Machines

Each machine has a unique way of holding and moving the workpiece relative to the grinding wheel. The right machine depends entirely on the shape of the part you need to produce.

What is a finish grinding machine used for?

Your components measure correctly, but they wear out too quickly in the field. This results in warranty claims and hurts your brand’s reputation for quality and reliability.

A finish grinding machine is used to achieve three main goals. It creates an excellent surface finish, holds extremely tight dimensional tolerances, and improves the part’s wear resistance and overall performance by reducing friction.

Finish grinding is the solution when "good enough" is not good enough. It is about performance, not just size. The process transforms a standard machined part into a high-performance component.

Improving Surface Finish

The main goal is to create an extremely smooth surface, measured by its surface roughness³ (Ra). A lower Ra value means less friction, less noise, and a better seal for parts like hydraulic cylinders.

Achieving Tight Tolerances

Finish grinding can remove tiny amounts of material, often just microns, to bring a part into its final, precise dimension. This is critical for parts in a high-precision assembly⁴, like bearings and shafts, where the clearance between them is everything.

Enhancing Material Properties

The smooth surface created by finish grinding greatly improves a part’s resistance to wear and fatigue. For a component like a gear or cam, this directly translates to a longer service life. We supply many customers in the automotive and aerospace industries with our superhard diamond and CBN honing tools specifically for this purpose, as they provide the ultimate surface finish⁵ on hardened materials.

What is a finish grinding machine for metal?

You need a mirror finish on a hardened alloy steel part. But your standard grinding wheels are just not giving you the result you need, and they wear down too fast.

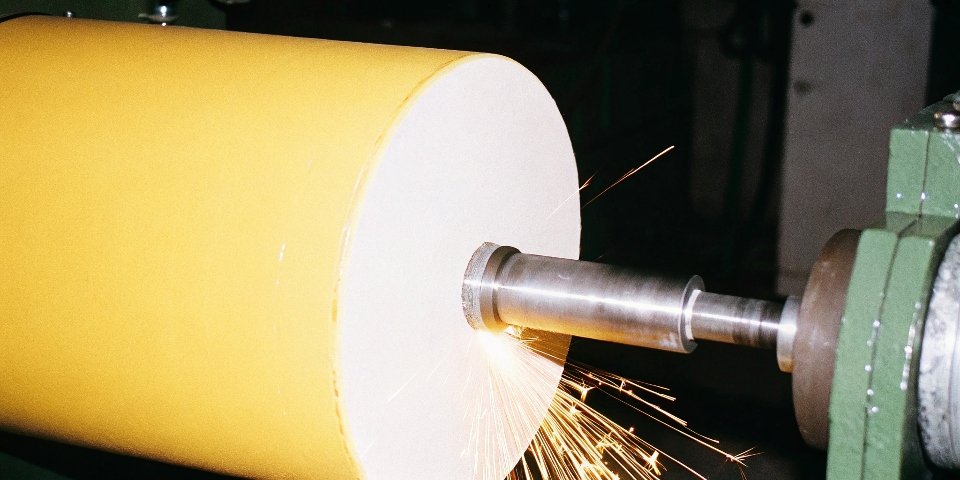

A finish grinding machine for metal is a high-precision grinder, like a cylindrical grinder, that is paired with the correct fine-grit abrasive wheel. For hard metals, this often means using a wheel made of a superhard abrasive like CBN or diamond.

When you are finish grinding hard metals, the machine, the wheel, and the process must all work together perfectly. It is a system that we understand very well.

The Machine: Rigidity is Key

The grinder itself must be extremely rigid and precise. Any vibration in the machine will be transferred to the workpiece, ruining the surface finish. These machines have advanced controls that allow for very small, precise movements.

The Wheel: The Critical Tool

This is our area of expertise. For finishing hardened ferrous metals like tool steel or bearing steel, a Cubic Boron Nitride (CBN)⁶ wheel is the best choice. CBN is the second hardest material after diamond and is chemically stable with iron at high temperatures, so it does not wear quickly. For non-ferrous metals or super hard materials like tungsten carbide, a diamond wheel is used. The grit size on these wheels is very fine to produce that mirror-like surface.

The Process: Controlling Heat

Finish grinding generates heat, which can damage the metal part’s surface. Because of this, the process almost always uses a flood of coolant. The coolant washes away tiny metal chips and, most importantly, keeps the workpiece at a stable temperature, preventing burn marks and preserving the integrity of the finish.

Conclusion

Finish grinding uses precise machines with fine-grit wheels, often CBN or diamond, to give metal parts an excellent surface finish, tight tolerances, and superior performance for critical applications.
