How were wheels used in a mill?

Have you ever seen an old watermill and wondered how that giant, slowly turning wheel managed to do so much work? It’s a powerful image from the past, but the connection between the wheel and the final product, like flour, can be a bit of a mystery.

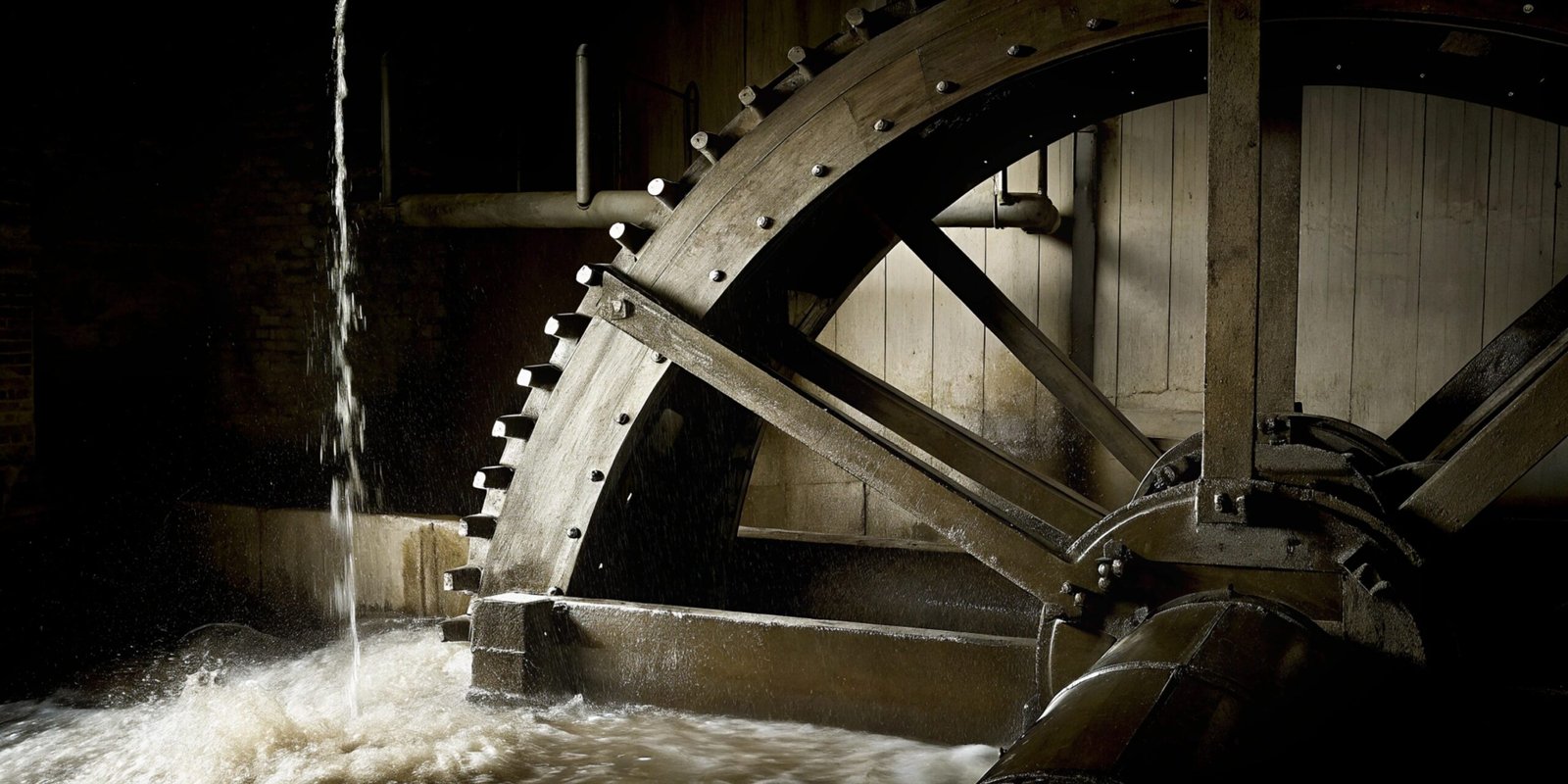

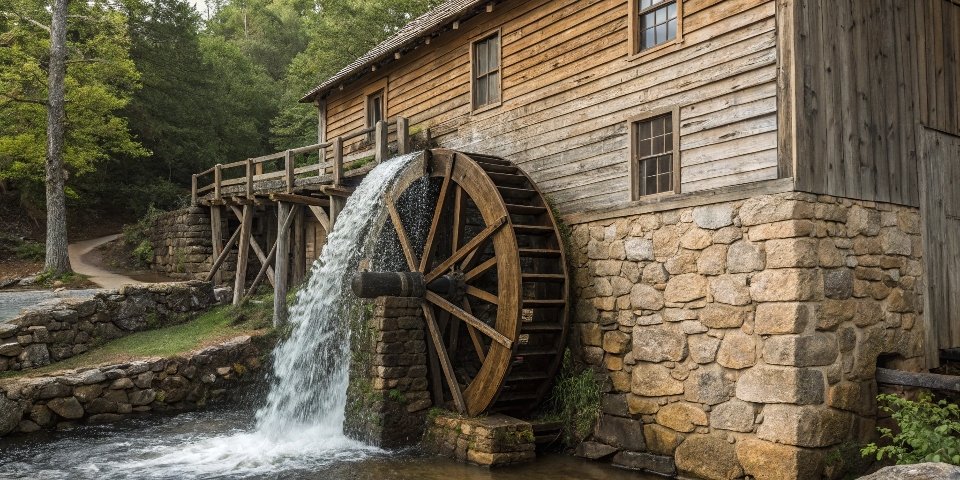

A mill’s wheel, most often a water wheel, was the engine of the entire operation. [1, 9] It captured the energy from moving water, which turned the wheel. [1] This rotation was transferred through an axle and a series of gears inside the mill to power the millstones or other machinery. [5, 11]

As someone who runs a factory making modern grinding tools, I have a deep respect for these early forms of industrial power¹. The principles of using rotational force to get work done haven’t changed, even if our technology has. This article will break down how these amazing structures worked, from the water pushing the wheel to the flour coming out at the end.

What are mill wheels used for?

You see the big wheel turning, but what was it actually doing? It wasn’t just for looks; it was the heart of production for a community, the pre-industrial version of a factory motor.

A mill wheel’s main job is to convert the energy of moving water into mechanical power. [10] This power drives a process like grinding, sawing, or hammering. [1] While most commonly associated with gristmills for making flour, this energy was also used to power sawmills, paper mills, and textile mills. [1]

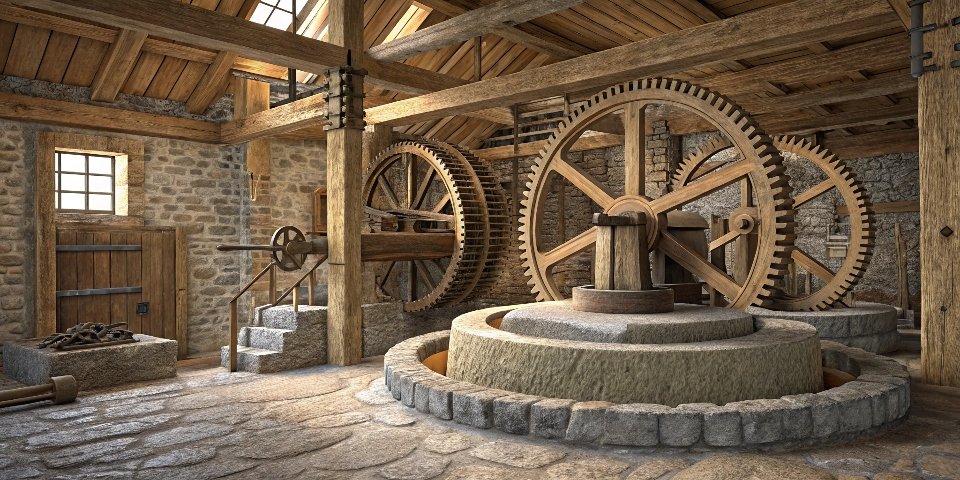

!Interior of a rustic mill showing large gears connecting to millstones. ¹

In our own factory, we use electricity to power massive grinding wheels, but the core idea traces right back to these early mills. The goal is always to harness an external power source to shape and process materials. A water wheel² was one of the first and most ingenious ways humans did this on a large scale. They powered a surprising variety of tasks that were essential to life and commerce.

Powering Different Types of Mills

The mechanical energy from a water wheel was very versatile. The main difference was the type of machinery it was connected to inside the mill.

What is the wheel on a mill called?

You might call it a "mill wheel," but is that the technically correct term? Using the right language can help you understand exactly how it works, and honestly, it just makes you sound like you know your stuff.

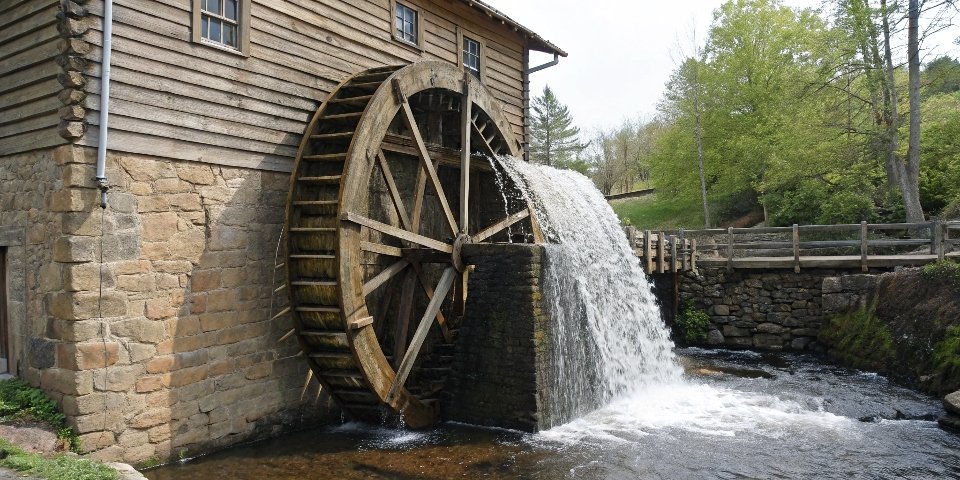

The large wheel on the outside of a mill powered by water is most accurately called a "water wheel." [4, 23] There are two main orientations, vertical and horizontal, with the vertical-axle type being the simpler, older design. [1, 8] Vertical wheels are further classified by how water is applied to them.

Just like we have hundreds of specific names for different types of grinding wheels in my business, millwrights had precise terms for their wheels. These names weren’t random; they described exactly how the wheel functioned. The type of wheel used depended entirely on the landscape and the body of water available.

Types of Vertical Water Wheels

The main vertical wheel types are overshot, breast-shot, and undershot, each with its own advantages.

How were wheels used?

So the big water wheel turns, but how does that slow, heavy rotation get inside the mill and become fast enough to actually grind grain? The answer lies in a beautiful and clever system of gears, often made of wood.

The water wheel turns a large axle that passes through the mill wall. [5] Attached to this axle is the first gear, a large vertical wheel called the "pit wheel." [3, 6] This pit wheel meshes with a smaller, horizontal gear called the "wallower," which turns the power 90 degrees and begins to increase the speed. [3, 5]

This system of "gearing up" is fundamental to mechanical engineering³. We face similar challenges today: our electric motors spin incredibly fast, but for some applications, we need to gear them down for more torque. These early millwrights did the opposite, taking the slow turn of the water wheel² and multiplying its speed.

Following the Power Inside the Mill

The journey from the water wheel to the millstone is a masterclass in early mechanical engineering.

1. Water Wheel and Axle: As the water wheel turns, it rotates the main axle, bringing the power into the building. [3]
2. Pit Wheel: This is the first and largest gear on the axle inside the mill. [3] Because it’s so large, its teeth are moving faster than the axle is rotating.
3. Wallower: This smaller gear is turned by the pit wheel. [3] This gear transfers the motion from a horizontal axis to a vertical one. Since it has fewer teeth than the pit wheel, it must spin much faster to keep up.
4. Great Spur Wheel: The vertical shaft continues upward to the "great spur wheel." [3, 6] This very large gear can drive several smaller gears at once, allowing a single water wheel to power multiple sets of millstones.
5. Stone Nut: Each set of millstones has its own "stone nut," a small gear that can be engaged with or disengaged from the great spur wheel. [3, 15] This allows the miller to operate just the stones they need. The stone nut directly turns the upper "runner" stone, which spins at speeds up to 120 rpm to grind the grain. [13, 15]

What does mill wheel mean?

We’ve talked about the mechanics, but what does the term "mill wheel" really mean beyond the literal definition? Like many things rooted in our industrial past, it has a deeper symbolic meaning that resonates even today.

Literally, a mill wheel is the water wheel used to drive a mill. [4, 23] Symbolically, however, it represents the harnessing of natural power, relentless and steady work, and the ingenuity of a pre-industrial era. [7, 9] It stands as a monument to early technology and transformation. [7]

When I see an old mill, I don’t just see an old building. I see the ancestor of my own factory. The desire to use technology to turn raw materials into valuable products is a story that started right here, with these wheels. The term itself evokes a sense of continuous effort and power. [9] In mythology, mill wheels were sometimes even associated with the turning of the world itself and the ability to influence fate. [7] This powerful symbolism comes from the central role mills played in their communities; they were the heart of food production, a place of transformation, and a source of wealth. [7] The constant, powerful motion was a daily reminder of both nature’s force and humanity’s ability to control it.

Conclusion

The wheel in a mill was a brilliant machine for converting water power into mechanical work. [1, 10] Through gears, it turned millstones and powered industries, becoming a symbol of relentless progress and ingenuity.
