Can I use a bigger disc on an angle grinder?

You have a job to do, but the only disc you have is larger than your grinder. Using it seems like a quick shortcut. But this could lead to a dangerous failure.

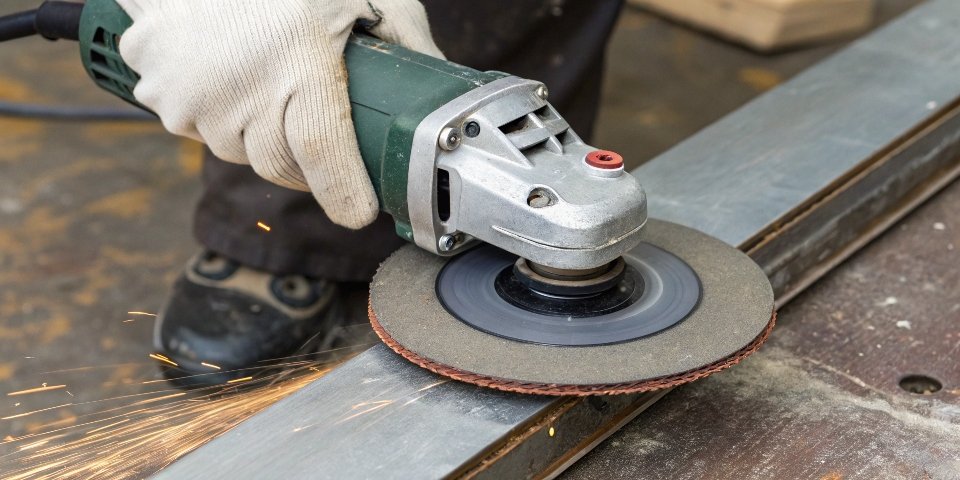

No, you should never use a bigger disc on an angle grinder. It is extremely dangerous. Larger discs are not rated for the high rotational speed (RPM) of smaller grinders and can shatter. It also requires removing the safety guard, exposing you to serious injury.

This is one of the most common questions I hear from customers. Putting the wrong size disc on your grinder might seem like a small change, but the physics behind it creates huge risks. We’ve spent nearly 30 years manufacturing abrasive tools¹ here in Henan, and safety is always our first conversation. I want to break down exactly why matching the disc to the grinder is so important. Let’s look at some specific scenarios to understand the reasons clearly.

Can I put a bigger disc on my angle grinder?

You need a bit more cutting depth, and that larger disc on the shelf looks tempting. But as you go to install it, something feels wrong. That feeling is your best safety guide.

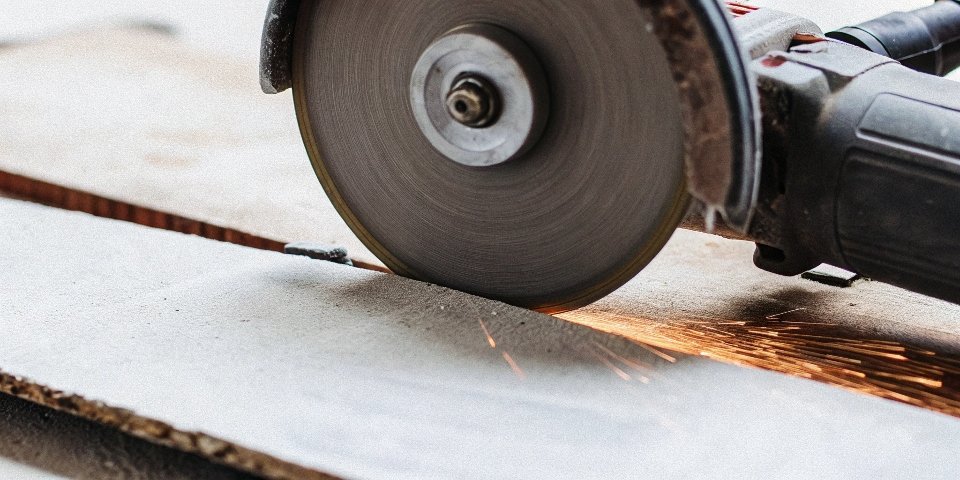

No, you cannot safely put a bigger disc on your angle grinder. The disc’s maximum safe speed (RPM) will be lower than the grinder’s speed, creating a risk of it exploding. Additionally, the grinder’s safety guard will not fit over the larger disc, which is a major safety violation.

At our factory, we test our products under extreme conditions. This has taught us that the rules written on the tools are there for very important reasons. Let’s go deeper into the specific dangers of using an oversized disc.

Why Oversizing is a Critical Mistake

The most significant danger comes from a mismatch in rotational speeds. Think of it like this: the larger a disc is, the faster its outer edge is traveling, even at the same number of revolutions per minute (RPM). To keep this edge speed safe, larger discs are designed with a lower maximum RPM rating². A smaller angle grinder³, however, is built to spin very fast. When you put a large disc on a small grinder, the grinder’s high RPM forces the disc to spin much faster than it was ever designed to handle. This can cause the disc to break apart with explosive force, sending sharp fragments flying.

Another major issue is the safety guard⁴. The guard is sized perfectly for the specified disc diameter. A larger disc simply will not fit inside it. Many people are tempted to remove the guard to make the big disc fit. This is a terrible idea. The guard is your primary protection from the spinning wheel and directs sparks away from you. Without it, you have no protection if the disc shatters.

Finally, a larger and heavier disc puts a huge strain on the grinder’s motor. The motor has to work much harder to get the disc up to speed and to maintain it during a cut. This can quickly cause the motor to overheat and burn out, destroying your tool.

Can I use a 115mm disc on a 125mm grinder?

You have a 125mm (5-inch) grinder, but you’ve run out of discs. You find a 115mm (4.5-inch) disc in your toolbox. Since it’s smaller, you figure it must be safe to use, right?

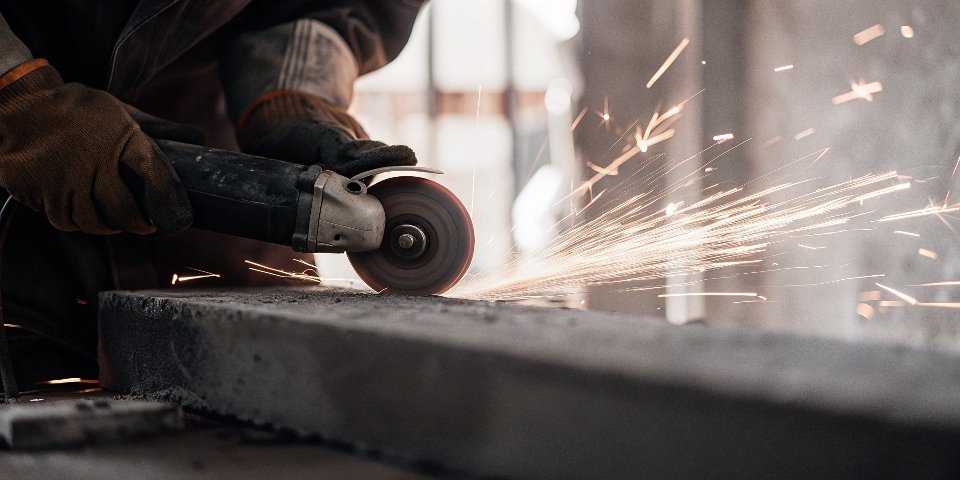

Yes, you can usually use a smaller 115mm disc on a 125mm grinder. From a safety standpoint, the smaller disc has a higher RPM rating than what the larger grinder produces, so it will not shatter. However, your cutting depth and overall work efficiency will be reduced.

This scenario is the opposite of the last one, and it’s much safer. But just because it’s safe doesn’t mean it’s a good idea for every job. We design our RL brand discs to provide the best performance at their specified size. Using a smaller one involves trade-offs that are important for any professional to understand. Let’s dive into what happens when you downsize.

Understanding the Performance Impact

The primary reason this is safe is the RPM rating. A smaller disc, like a 115mm one, is built to withstand higher rotational speeds than a larger 125mm disc. Because a 125mm grinder spins at a lower RPM than a 115mm grinder, it will not spin the smaller disc faster than its maximum safe speed⁵. So, the risk of the disc exploding is gone.

However, you will face performance issues. The most obvious one is a loss of cutting depth. That small difference in radius significantly reduces how deeply you can cut into a material. I remember a client who had to do this in an emergency. He told me the job took him twice as long because he had to make multiple shallow passes instead of one clean cut.

Another issue is a reduction in surface speed. The effectiveness of a grinding or cutting disc depends on how fast the edge is moving over the workpiece. Even at the same RPM, a smaller disc has a slower edge speed. This means cutting and grinding⁶ can feel sluggish and take longer, and it will wear down the smaller disc faster. It’s a workable solution in a pinch, but it’s not efficient for regular, professional use.

Can you put a 4 inch blade on a 4.5 inch grinder?

You’re in a similar situation, but with inch-based sizes common in North America. You have a 4.5-inch grinder, but the only blade available is a 4-inch one. It seems like a tiny difference.

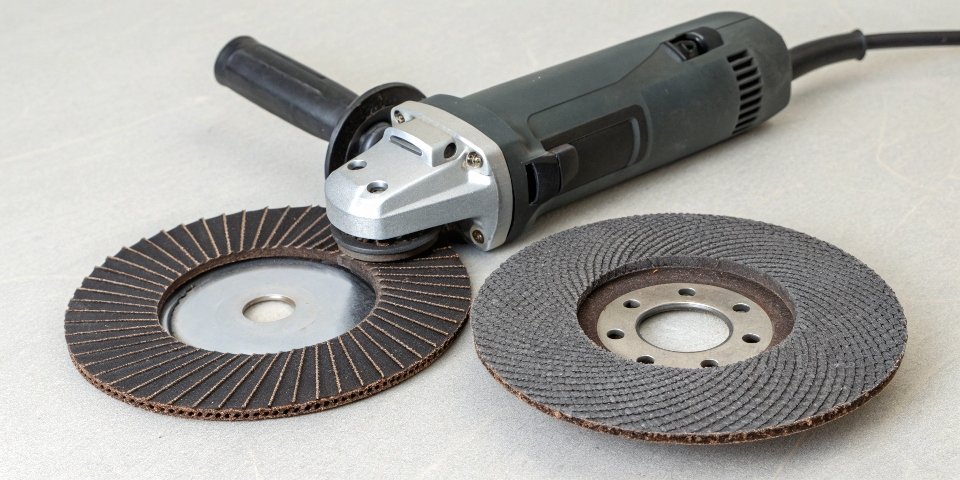

Yes, putting a 4-inch blade on a 4.5-inch grinder is generally safe. The smaller blade is rated for a higher RPM, so it can handle the speed of the grinder. The main downsides are a loss of efficiency and a noticeable reduction in the depth of cut.

This is another common question we get from our international buyers, especially those in markets that use imperial measurements. The logic is exactly the same as using a 115mm disc on a 125mm grinder. Safety comes first, and in this case, the physics are on your side. But we need to balance that with how well the tool actually performs its job.

Safety vs. Efficiency

Safety is the top priority. A 4-inch blade has a maximum RPM rating that is higher than the operating RPM of a 4.5-inch grinder. So, the tool will not spin the blade past its breaking point. Your safety guard will also still cover the blade, although there will be a larger gap, which might allow more sparks to fly. So, from a pure safety perspective, it works.

The trade-off is efficiency. The loss of a half-inch in diameter means you lose a quarter-inch of cutting depth. This might not sound like much, but if you are cutting thick metal or pipe, it can be the difference between cutting through in one pass or needing two. As a manufacturer of high-performance abrasives, we engineer our discs for optimal surface speed to remove material quickly. Using a smaller disc means you aren’t getting the performance you paid for. It will feel slower and less aggressive in the cut. For a quick, one-off task, it’s acceptable. For a full day’s work, it will slow you down and wear out your blades faster.

Do all discs fit all angle grinders?

You walk through a hardware store and see walls of different discs and dozens of different grinders. It’s easy to wonder if they are universally compatible. Wouldn’t that make things simple?

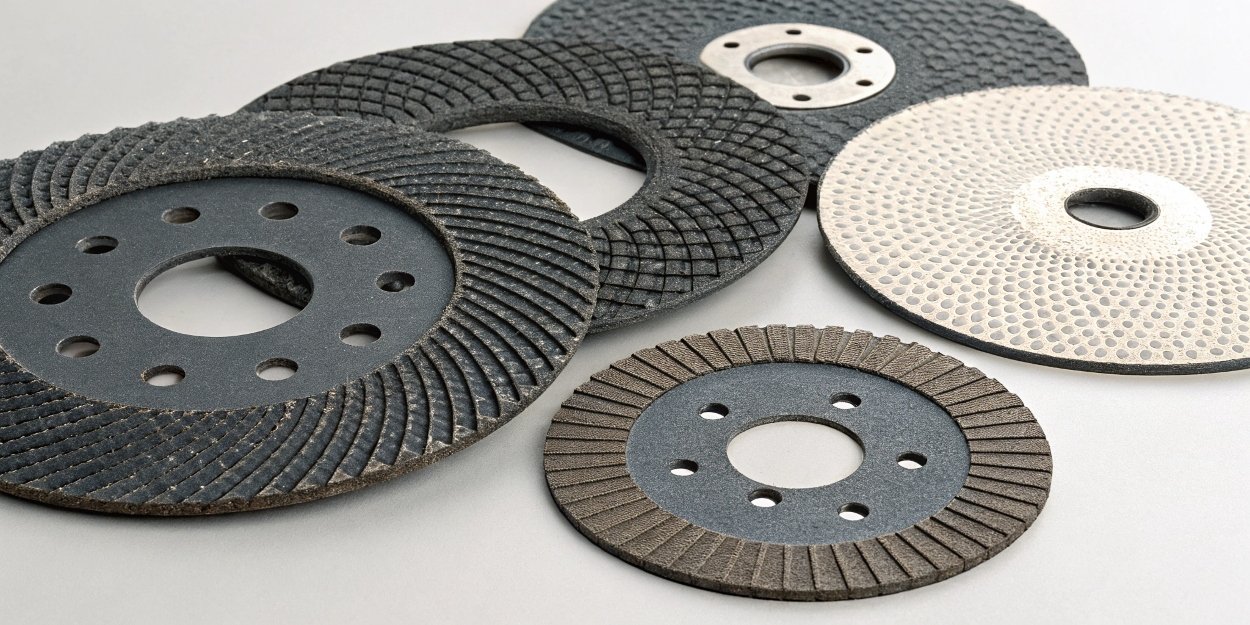

No, not all discs fit all angle grinders. You must always check two key things for a safe fit: the disc’s diameter must match the grinder’s specified size, and the disc’s arbor hole (center hole) must match the grinder’s spindle diameter.

This question gets to the heart of the matter. As a B2B supplier, we always stress the importance of specifications to our clients. Two simple rules can guarantee safety and performance. Getting either one wrong can lead to poor results or, worse, a serious accident. Let’s clearly define these two rules.

The Two Golden Rules of Disc Compatibility

Following these simple rules will keep you safe and productive.

1. Match the Diameter
As we’ve discussed, the disc’s diameter is tied directly to its maximum safe RPM. Using a disc larger than what the grinder is designed for is one of the most dangerous mistakes you can make. It risks a catastrophic failure at over 10,000 RPM. Always use a disc with a diameter that matches what is written on your angle grinder³.

2. Match the Arbor Hole
The arbor hole is the hole in the center of the disc. It must fit perfectly onto the grinder’s spindle and be secured by the flanges and lock nut. The most common arbor size is 7/8 inches (or 22.23mm). If the hole is too small, it won’t fit on the spindle. If the hole is too large, it will be impossible to center correctly. An off-center disc will vibrate violently, which can damage the grinder and also cause the disc to fracture and break apart. While adapter rings exist to fit a larger arbor hole onto a smaller spindle, they must be high-quality and fit perfectly to be considered safe.

Conclusion

For your safety and the best results, always use a disc that matches your angle grinder’s specified diameter and arbor size. Checking these two things is simple and prevents serious accidents.
